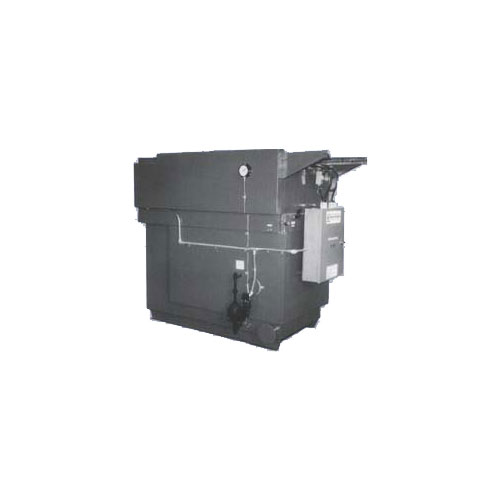

Economy Line

Economy Line

STANDARD FEATURES

  • Stainless Steel Vapor Tank
  • Insulation On Sides And Bottom
  • Self Distilling
  • Combination Spray / Drain
  • Pump With Foot Switch
  • Portable Stainless Steel heaters
  • Large Clean Out Port
  • Vapor Level Safety Switch
  • Lip Vent Exhaust Duct W / O Blower
  • Boiling Chamber High Temp Limit
    Switch Mounted On Heater
  • Bi – Parting Sliding Covers
  • ”Vapor Up” Thermostat
  • Easily Adjusted To Use Trichlorethylene Or Perchiorethylene
  • Warning Lights With Switches To indicate :
    – Low Solvent
    – Clean – out Time
    – Water Or Vapor Line Control Failure
  • Heaters Are individually Fused and Switched .Loss of One Heater does not completely disable Machine And interrupt production .

AVAILABLE OPTIONS

  • EXHAUST BLOWER including motor and magnetic starter mounted on machine
  • WATER REMOVER necessary when removing soluble oils
  • LOW-SOLVENT CUT OUT added and possible solvent breakdown
  • WATER REGULATOR throttling valve conserves cooling water and reduces sweating
  • NEMA-12 CONTROL BOX for humid locations
  • FLOW SWITCH AND Strainer for condenser water
  • HI TEMP LIMIT for condensor water
  • POWERED COVERS air operated and bi- parting for model 48 and larger

SPECIFICATION

MODEL 1 CAP 2 HEAT VAPOR DIMS OVERALL DIMS SOLV. CAP.

FAN
CFM
@
1/2 S.P.

 SHP
WGT
A B C D E F G H
24 750 6 K W 24 22 18 62 34 53 20 10 200 600
30 1000 10 K W 30 22 18 68 34 53 25 12 250 650
36 1500 12 K W 36 22 18 74 34 53 30 15 300 700
36 A 1500 12 K W 36 22 24 74 34 59 30 15 300 750
48 2000 16 K W 48 22 18 86 34 53 22 12 400 800
48 A 2000 16 K W 48 22 24 86 34 59 22 12 400 850
48 B 2000 16 K W 48 28 24 86 40 65 28 15 500 900
48 C 2000 16 K W 48 28 30 86 40 71 28 15 500 950
60 2500 20 K W 60 22 18 98 34 53 28 15 500 1000
60 A 2500 20 K W 60 22 24 98 34 59 28 15 500 1050
60 B 2500 20 K W 60 28 24 98 40 65 35 20 625 1100
60 C 2500 20 K W 60 28 30 98 40 71 35 20 625 1200
