3 BASIC SIZES

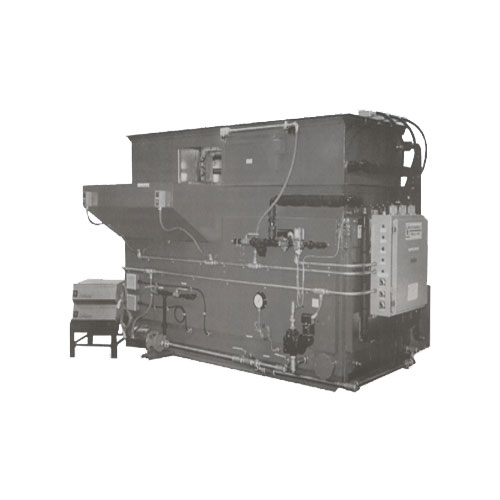

A. VAPOR / MATIC

Production capacity 3000 # / hr. Standard basket carries for

18” x 18” x 6 deep baskets optional carries for 18” x 24” x 6” deep baskets Maximum basket height 10”.

B. MAXI / MATIC

Same production capacity and basket carries as the Vapor / Matic. Heated chamber is extended for use as a conventional vapor / spray degreaser.

Extended Vapor Area :
42” x 26” x 24” DEEP (STD)
42” x 32” x 24” DEEP ( with optional carriers )

C. MINI / MATIC

A smaller version of the vapor / matic. Production capacity 1500 # / hr.

Maximum Basket Size

15” x 12” x 4” deep
Maximum basket height 8”

STANDARD EQUIPMENT

• Stainless Steel Vapor Tank.
• Insulation On Sides And Bottom.
• Self distilling.
• Combination Circulation / Drain Pump.
• Portable Stainless Steel Heaters.
• Large Clean Out Ports
• Vapor Level Safety Switch.
• Exhausted Receiving Platform.
• Boiling Chamber High Temp. Limit.
• Water Temperature Regulator.
• ” Vapor Up ” Thermostat
• Easily Adjusted To Use Trichlorethylene or Perchlorethylens
• Low Solvent Cut Out.
• Water Flow Switch And Strainer.
• Nema 12 Control Box.
• High Temp Limit for condensor water.
• Water / solvent separator.
• Warning Lights With Switched To Indicate :
  – Low Solvent
  – Clean Out Time
  – Water Or Vapor Line Control Failure
• Heaters Are Individually Fused And Switched. Loss Of One Heater Does Not Completely Disable Machine And Interrupt Production.

OPTIONAL EQUIPMENT

• EXHAUST BLOWER including motor and magnetic starter.
• TIMER controls basket dwell time and circulation pump in dip chamber.
• ULTRASONICS for dip chamber, immersible ultrasonic transducers with timer.
• “COOL ZONE” freeboard chilling system..
• CLOSED CIRCUIT COOLING eliminates tap water and sewer.
• SOLVENT RECOVERY STILLS
